REDUCE SLIPPING ACCIDENTS

Meet
OSHA, BOCA, VOSI, ADA &
International Building Code (IBC)
Requirements

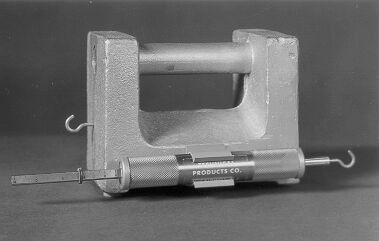

MODEL 80 FLOOR & FOOTWEAR FRICTION TESTER

  • The Model 80 is an extremely simple instrument that measures ''slip resistance'' by determining both the static and kinetic coefficients of friction between leather (dry) and rubber (dry & wet) and the floor surface.
  • The contact area of the leather pads is designed to simulate the pressure caused by a 160 lb. person wearing leather or rubber soled shoes; thereby providing a realistic comparison with actual service conditions. Test results correlate with slip & fall accident rate.

TEST PROCEDURE

1. Test floors per VOSI V41.21(*), ''Universal Specification / Test Method for Slip Resistant Walkways, in the Field and Laboratory, as Measured by a Drag Type Friction Tester''.

2. Test footwear per VOSI V41.22(*), ''Universal Specification / Test Method for Slip Resistant Footwear, in the Field and Laboratory, as Measured by a Drag Type Friction Tester''.

MODEL 80 TEST KIT

  • Padded carrying case containing: 10 lb. Weight, 5 lb. Force Gage Calibration Weight, 10.6 lb. Range Force Gage, 0.20 lb. divisions readable to 0.10 lb. (0.01 COF), Temperature / Humidity Gage.
  • Secondary Standard Polypropylene Leather Test Surface (dry test only)
  • Secondary Standard ''Florida'' Ceramic Tile Rubber Test Surface (dry & wet)
  • Sensor pads: Leather on test weight (dry only); ''Monarch EVA'' (dry & wet)
  • Replacement Pads (set of 3): Leather $40 -  ''Monarch EVA'' $60 - Silicone Rubber $100

Cost: $1500 (includes operator certification) FOB: North Caldwell, NJ 07006

Click here to see Model 80 components which can be used to test both flooring and footwear.

Click here for Model 80 Printable Fact Sheet

(*) see www.voicesofsafety.com . . . "Slip & Fall Standards"
